YOLO 튜토리얼 3. Implementing the forward pass of the network

YOLO 튜토리얼 1

2020/04/26 - [Programmer/Deep Learning] - YOLO 튜토리얼 1.YOLO 란?

YOLO 튜토리얼 1.YOLO 란?

YOLO 튜토리얼 2

2020/04/26 - [Programmer/Deep Learning] - YOLO 튜토리얼 2. Creating the layers of the network architecture

YOLO 튜토리얼 2. Creating the layers of the network architecture

---



Defining The Network

darknet.py에 darknet의 class를 정의



class Darknet(nn.Module):

    def __init__(self, cfgfile):

        super(Darknet, self).__init__()

        self.blocks = parse_cfg(cfgfile)

        self.net_info, self.module_list = create_modules(self.blocks)





Implementing the forward pass of the network

forward함수는 해당 layer의 입력을 받아서 출력할 결과를 계산한 후 return해줌

CUDA는 엔비디아(NVIDIA)에서 개발한 GPU개발 툴로 한번에 많은 양을 처리하기 위해서 사용한다.

def forward(self, x, CUDA): #해당 layer의 입력을 받아 출력할 결과를 계산한 후 return
    modules = self.blocks[1:]
    outputs = {}   #We cache the outputs for the route layer

    write = 0     #This is explained a bit later
    for i, module in enumerate(modules):
        module_type = (module["type"])



Convolutional and Upsample Layers, Route Layer/Shortcut Layer

        if module_type == "convolutional" or module_type == "upsample":
            x = self.module_list[i](x)

        elif module_type == "route":
            layers = module["layers"]
            layers = [int(a) for a in layers]

            if (layers[0]) > 0:
                layers[0] = layers[0] - i

            if len(layers) == 1:
                x = outputs[i + (layers[0])]

            else:
                if (layers[1]) > 0:
                    layers[1] = layers[1] - i

                map1 = outputs[i + layers[0]]
                map2 = outputs[i + layers[1]]

                x = torch.cat((map1, map2), 1)

        elif  module_type == "shortcut":
            from_ = int(module["from"])
            x = outputs[i-1] + outputs[i+from_]


         elif module_type == 'yolo':

            anchors = self.module_list[i][0].anchors
            #Get the input dimensions
            inp_dim = int (self.net_info["height"])

            #Get the number of classes
            num_classes = int (module["classes"])

            #Transform
            x = x.data
            x = predict_transform(x, inp_dim, anchors, num_classes, CUDA)
            if not write:              #if no collector has been intialised.
                detections = x
                write = 1

            else:
                detections = torch.cat((detections, x), 1)

        outputs[i] = x

return detections



YOLO(Detection Layer)

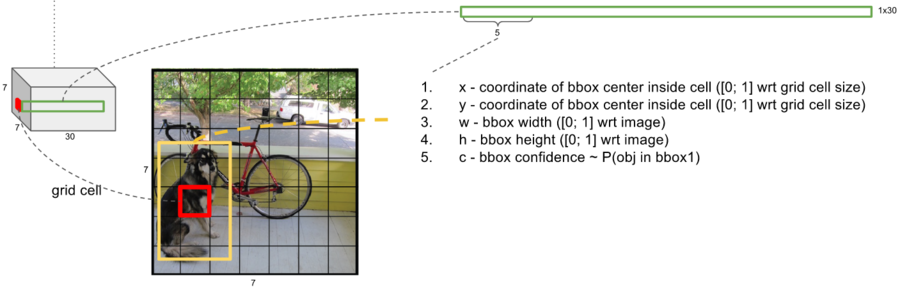

Yolo의 output은 feature map의 depth에 (혹은 dimension에) bounding box 속성들이 있는 feature map이다. Cell에 의해 predict된 attributes는 쭉 이어붙인 상태로 되어있다. 그러므로 예를 들어 (5,6) Cell 의 2번째 bounding box를 참조하고 싶다면

map[ 5, 6, (2-1) * (5+C) : 2 * (5+C) ] 의 인덱스를 참조해야 한다. 이전 글에서 언급했지만, 여기의 C는 class 개수이고 앞의 5는 xyhw와 confidence이다. 이 형식은 output을 처리하기가 굉장히 불편하다.

이 것들이 나누어진 tensor이 아닌 single tensor에 들어가 있게 하기 위해서, predict_transform 이라는 함수를 만들자.



Transforming Output

predic_transform 함수는 util.py에 작성할 것이며, darknet의 forward 시점에 사용할 것이다.

YOLO의 output을 처리하기가 불편하기 때문에 tensor가 아닌 single tensor에 들어가 있게 하기 위해서 만든다.



from __future__ import division


import torch

import torch.nn as nn

import torch.nn.functional as F

from torch.autograd import Variable

import numpy as np

import cv2


def predict_transform(prediction, inp_dim, anchors, num_classes, CUDA = True):

batch_size = prediction.size(0)

    stride =  inp_dim // prediction.size(2)

    grid_size = inp_dim // stride

    bbox_attrs = 5 + num_classes

    num_anchors = len(anchors)



    prediction = prediction.view(batch_size, bbox_attrs*num_anchors, grid_size*grid_size)

    prediction = prediction.transpose(1,2).contiguous()

    prediction = prediction.view(batch_size, grid_size*grid_size*num_anchors, bbox_attrs)

anchors = [(a[0]/stride, a[1]/stride) for a in anchors]

#Sigmoid the  centre_X, centre_Y. and object confidencce

    prediction[:,:,0] = torch.sigmoid(prediction[:,:,0])

    prediction[:,:,1] = torch.sigmoid(prediction[:,:,1])

    prediction[:,:,4] = torch.sigmoid(prediction[:,:,4])

#Add the center offsets

    grid = np.arange(grid_size)

    a,b = np.meshgrid(grid, grid)



    x_offset = torch.FloatTensor(a).view(-1,1)

    y_offset = torch.FloatTensor(b).view(-1,1)



    if CUDA:

        x_offset = x_offset.cuda()

        y_offset = y_offset.cuda()



    x_y_offset = torch.cat((x_offset, y_offset), 1).repeat(1,num_anchors).view(-1,2).unsqueeze(0)



    prediction[:,:,:2] += x_y_offset

#log space transform height and the width

    anchors = torch.FloatTensor(anchors)



    if CUDA:

        anchors = anchors.cuda()



    anchors = anchors.repeat(grid_size*grid_size, 1).unsqueeze(0)

    prediction[:,:,2:4] = torch.exp(prediction[:,:,2:4])*anchors

prediction[:,:,5: 5 + num_classes] = torch.sigmoid((prediction[:,:, 5 : 5 + num_classes]))

prediction[:,:,:4] *= stride

return prediction



Detection Layer Revisited

darknet.py file에와서 import를 추가해준다.

from util import *



Loading Weights :Weights file

def load_weights(self, weightfile):
    #Open the weights file
    fp = open(weightfile, "rb")

    #The first 5 values are header information
    # 1. Major version number
    # 2. Minor Version Number
    # 3. Subversion number
    # 4,5. Images seen by the network (during training)
    header = np.fromfile(fp, dtype = np.int32, count = 5)
    self.header = torch.from_numpy(header)
    self.seen = self.header[3]

    weights = np.fromfile(fp, dtype = np.float32)
    ptr = 0
    for i in range(len(self.module_list)):
        module_type = self.blocks[i + 1]["type"]

        #If module_type is convolutional load weights
        #Otherwise ignore.
        if module_type == "convolutional":
            model = self.module_list[i]
            try:
                batch_normalize = int(self.blocks[i+1]["batch_normalize"])
            except:
                batch_normalize = 0

            conv = model[0]
        if (batch_normalize):
            bn = model[1]

            #Get the number of weights of Batch Norm Layer
            num_bn_biases = bn.bias.numel()

            #Load the weights
            bn_biases = torch.from_numpy(weights[ptr:ptr + num_bn_biases])
            ptr += num_bn_biases

            bn_weights = torch.from_numpy(weights[ptr: ptr + num_bn_biases])
            ptr  += num_bn_biases

            bn_running_mean = torch.from_numpy(weights[ptr: ptr + num_bn_biases])
            ptr  += num_bn_biases

            bn_running_var = torch.from_numpy(weights[ptr: ptr + num_bn_biases])
            ptr  += num_bn_biases

            #Cast the loaded weights into dims of model weights.
            bn_biases = bn_biases.view_as(bn.bias.data)
            bn_weights = bn_weights.view_as(bn.weight.data)
            bn_running_mean = bn_running_mean.view_as(bn.running_mean)
            bn_running_var = bn_running_var.view_as(bn.running_var)

            #Copy the data to model
            bn.bias.data.copy_(bn_biases)
            bn.weight.data.copy_(bn_weights)
            bn.running_mean.copy_(bn_running_mean)
            bn.running_var.copy_(bn_running_var)

        else:
            #Number of biases
            num_biases = conv.bias.numel()

            #Load the weights
            conv_biases = torch.from_numpy(weights[ptr: ptr + num_biases])
            ptr = ptr + num_biases

            #reshape the loaded weights according to the dims of the model weights
            conv_biases = conv_biases.view_as(conv.bias.data)

            #Finally copy the data
            conv.bias.data.copy_(conv_biases)

     #Let us load the weights for the Convolutional layers
     num_weights = conv.weight.numel()

     #Do the same as above for weights
     conv_weights = torch.from_numpy(weights[ptr:ptr+num_weights])
     ptr = ptr + num_weights

     conv_weights = conv_weights.view_as(conv.weight.data)
     conv.weight.data.copy_(conv_weights)

     model = Darknet("cfg/yolov3.cfg")
     model.load_weights("yolov3.weights")
